GCYFXTY Central Bundle Tube Type Micro Air Blown Micro Fiber Optic Cable

Brand Name : TTI

Model Number : GCYFXY

Certification : ISO9001

Place of Origin : China

MOQ : 50KM

Price : 198

Payment Terms : L/C, T/T

Supply Ability : 1000KM

Delivery Time : 7-15DAYS

Packaging Details : 4KM/Drum

Name : micro fiber optic cable

Type : GCYXTY

Brand : OEM

Use : FTTH

Cores : 24

Loose tube : PBT

Fiber Type : Fiber Type

Contact Now

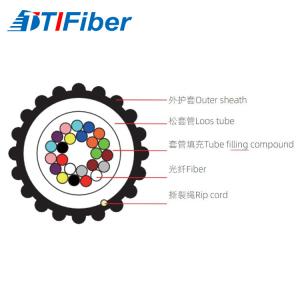

Central Bundle Tube Type Micro Air Blown Micro GCYFXTY Fiber Optic Cable

GCYFXTY The central tube type air blown micro cable is formed by putting the optical fiber into the loose
tube made of high modulus material, filling the loose tube with non-toxic and harmless waterproof
compound, placing the reinforcing element aramid outside the loose tube as required, and then extruding
the sheath with low friction coefficient.

Features
① The optical fiber cable has the advantages of small si e, light weight, moderate soft and hard, easy bending during air blowing laying and convenient operation.
② All non-metallic structure without grounding.
③ The micro cable can be blown out to facilitate the replacement of new varieties of optical fibers and cables in the future.
④ Good crush resistangce and flexibility.

GCYFXTY Central Bundle Tube Type Micro Air Blown Micro Fiber Optic Cable

Optical Characteristics

Item		G.652	G.655	50/125um	62.5/125um
Attenuation	@850nm			≤3.0dB/km	≤3.2dB/km
	@1300nm			≤1.0dB/km	≤1.2dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHZ.km	≥200MHZ.km
Bandwidth	@1300nm			≥1000MHZ.km	≥600MHZ.km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable cut-oﬀ wavelength		≤1260mm	≤1450mm

Structural Parameters

Cable Type

Fiber Count

Diameter (mm)

Weight

(kg/km)

Tensile strength

Long/Short term (N)

Crush resistance

Long/Short term (N/100mm)

GCYFTY

2~12

2.5

0.15G/0.5G

150/450

GCYFTY

14~24

3.0

0.15G/0.5G

150/450

Environmental Characteristics

Operating temperature / -40~+70℃

Storage temperature / -40~+70℃
